Features
• Multi-function DXI image processing system, CNC programmable detection
• Multi-function workstation with ±60° tilt and X-Y multi-axis movement
• 90kV 5µm closed X-ray tube, digital flat panel with 2 mega pixels CCD camera
• X-ray tube & detector automatic lifting and descending, with convenient target point positioning system
• Max. loading area 500mm*450mm, max. inspection area 500mm*450mm, with 600X Magnification

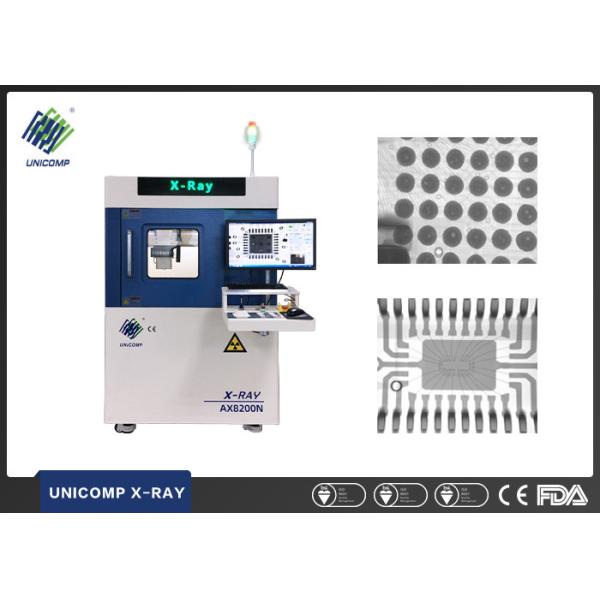

X-ray Images
| Item | Description | Specifications |
| X-Ray Tube | Max. Voltages, Type | 90kV, Closed |
| Power Consumption | 8W |
| Focal Spot Size | 5 μm |
| Motion range (Up and Down) | 150mm |
| Magnification | 600X |
| Detector | FPD | Active Area: 130mm*130mm |
| Resolution | 58 LP/cm |
| Camera | 2 Mega Pixel CCD |
| Motion range (Up and Down) | 290mm |
| System Computer | Operating System | Industrial PC, Win 7, i7 Processor |
| Monitor | 22” LCD |
| Software | User Interface | Unicomp Multi-function DXI image processing system |
| Working Platform | Max. Loading Area | 500mm×450mm |
| Max. Inspection Area | 500mm×450mm |
| Max. Loading Weight | 10kg |
| Movement Control | Joysticks, Mouse and Keypads |
| Table Tilting Angle | ±60° |
| Navigation | Camera | HD Camera, Laser point |
| Axis | Manipulator | 6-axis with X1/X2 / Y / Z1 / Z2 / T |
| Equipment Features | Power Supply | AC 110~220V (±10%) 50Hz, 1.0kW |
| Outline Dimensions | 1100(W)×1250(D)×1700(H)mm |
| System Weight | 1300 kg |
| Optional Accessories | 1.Barcode Scanner; 2.Dimension Measurement Gauge |
| Warranty | One year warranty, free replacement the parts due to original manufacturer's defect, but expect of man-made damages and force majeure |
Application
BGA , CSP , Flip Chip, LED , Fuse, Diode, PCB
Semiconductor , Battery Industry , Small Metal Casting, Electronic Connector Module, Cables,
Aerospace Components, Photovoltaic Industry
